MBA8 Junior, Serial# 200 !

MBA8 Junior, Serial# 200 !

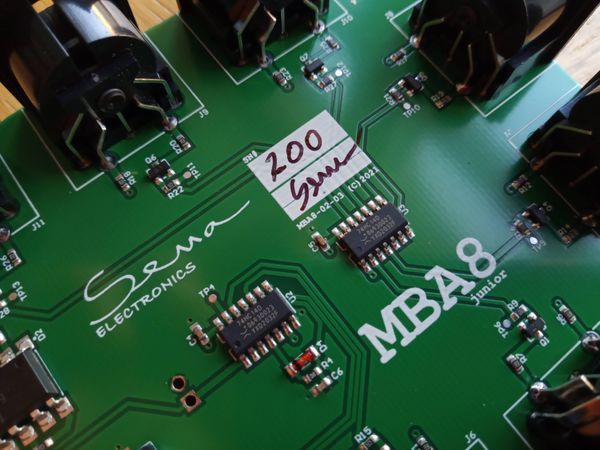

#200! ❤😉 Serial number 200 going out tomorrow for another great musician in UK. 🎹🎸 Thank you all for your preference https://sergiosena.com/6-way-midi-thru-splitter-board/ [https://sergiosena.com/6-way-midi-thru-splitter-board/]

MBA8 Prototypes

MBA8 Prototypes

Going back 5ys now, earlier prototypes for the MBA8 MIDI THRU SPLITTER 🎸🎼🎹 Current designs are now improved versions of that prototype with sturdier hardware stages to withstand life on the road 😉 To get more details on how the electronic hardware is improved, please check below and/or contact me directly

ABC-Y Box with MIDI Control

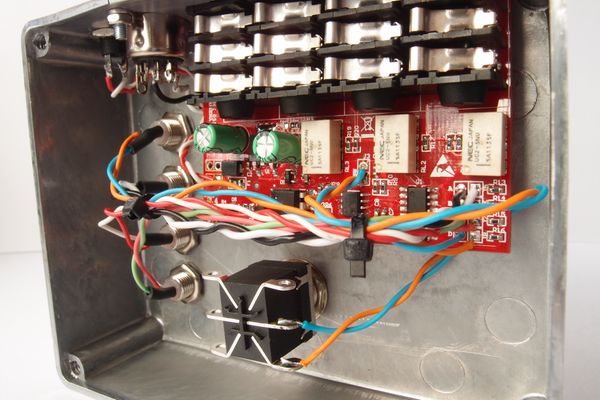

ABC-Y Box with MIDI Control

Relay switched IN/OUT and manual footswitch, along with MIDI Control with 128 presets. 🎼✌️ https://www.sergiosena.com/products/

Effects Pedals Patchbay

Effects Pedals Patchbay

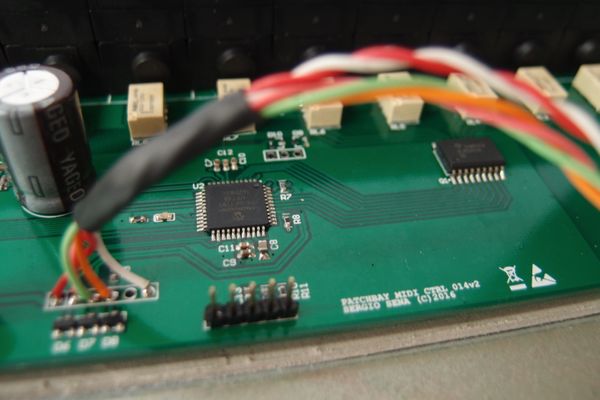

Going over the Effects Pedal Patchbay Looper with MIDI control. Going to design a new looper circuit to be able to use in a Rack or in a Pedalboard enclosure.

Old designs get new attention

Old designs get new attention

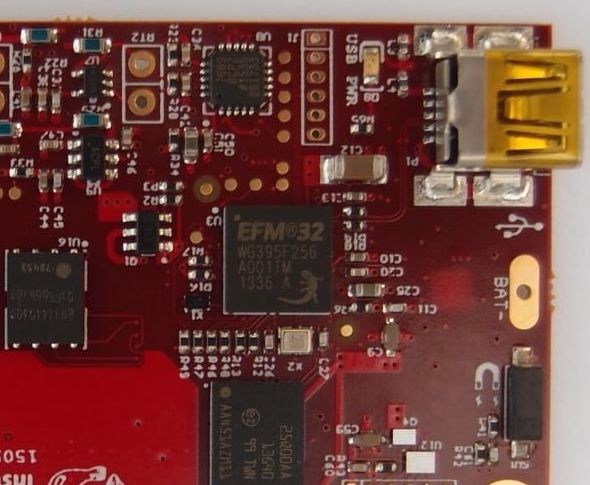

Going back to old designs, getting indepth on these amazing EFM32 Gecko ARM-Cortex-M4 microcontrollers 👍👌😉

MBA8 Junior batch

MBA8 Junior batch

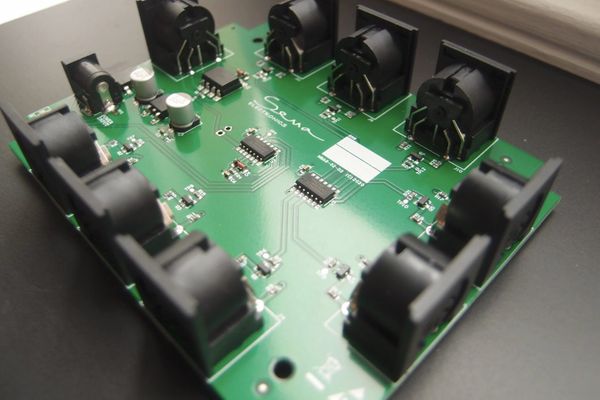

Another batch of the MBA8jr MIDI Thru Splitters. All going to fabulous musicians across the planet https://sergiosena.com/6-way-midi-thru-splitter-board/ [https://sergiosena.com/6-way-midi-thru-splitter-board/?fbclid=IwAR2rTWk3z36bniSozd0ejgx_2KIKrThiJtrvdijZhRrO2_FpZ63dodN5Pvc]

PIC32 Experimentations

music gear protection

PIC32 Experimentations

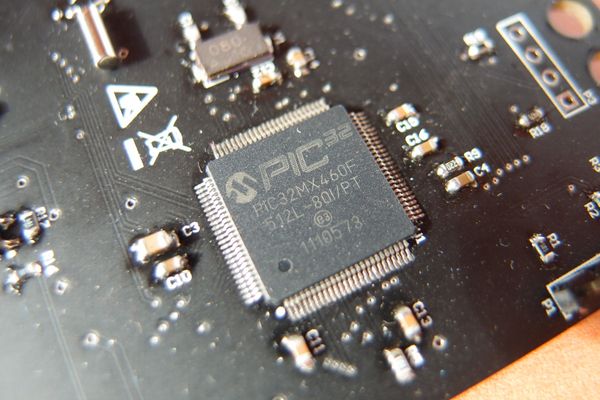

Doing some experiments with PIC32 microcontrollers, RISC processor, great competitor of ARM-Cortex 💪✌️ #mcu #risc #microcontroller #microchip

MBA8-R 8ch, MIDI Splitter Rack Version

MBA8-R 8ch, MIDI Splitter Rack Version

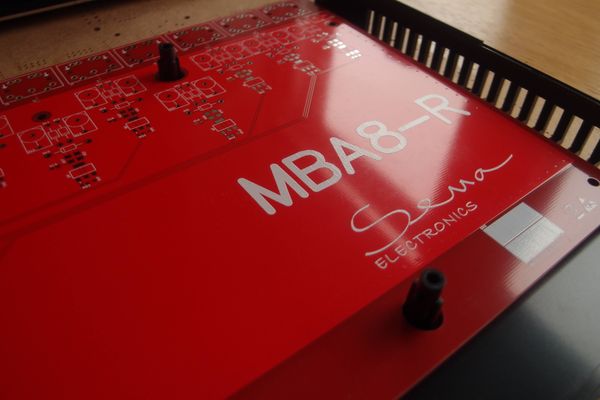

The Rack version of the MBA8 MIDI Splitter is having a makeover and improved design for enhanced and hardened work on professional settings. https://www.sergiosena.com/products/

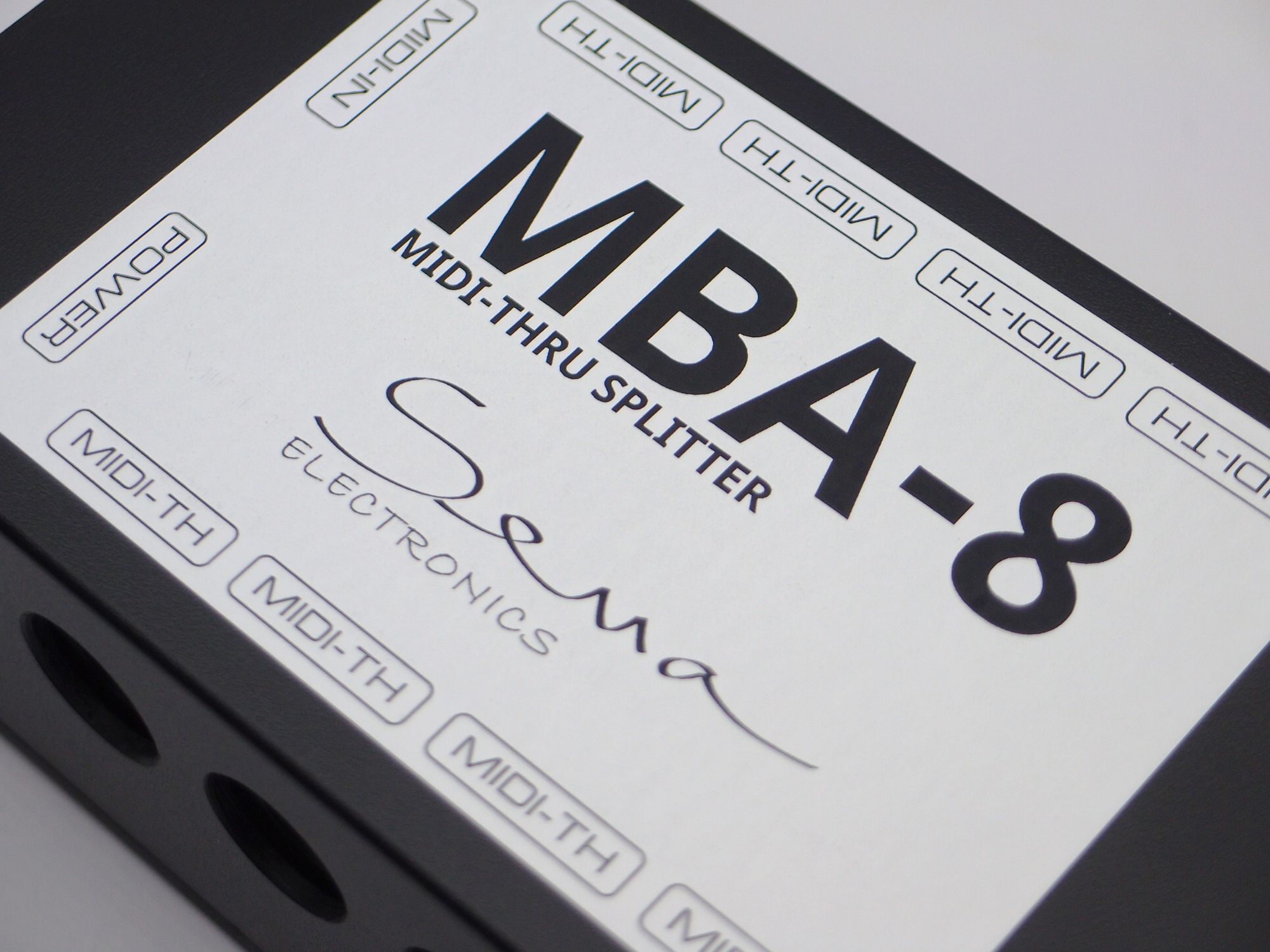

MBA8 Splitter, pro/live version

MBA8 Splitter, pro/live version

Aseembly day, another batch of MIDI Splitters getting ready to go out to brilliant musicians 😍🎼🎹🎸 https://sergiosena.com/6-way-midi-thru-splitter-board/ [https://sergiosena.com/6-way-midi-thru-splitter-board/] This version was designed for professional users that required hardened enhanced gear to perform in professional studios and at live gigs.

MBA8 Junior MIDI Splitter

MBA8 Junior MIDI Splitter

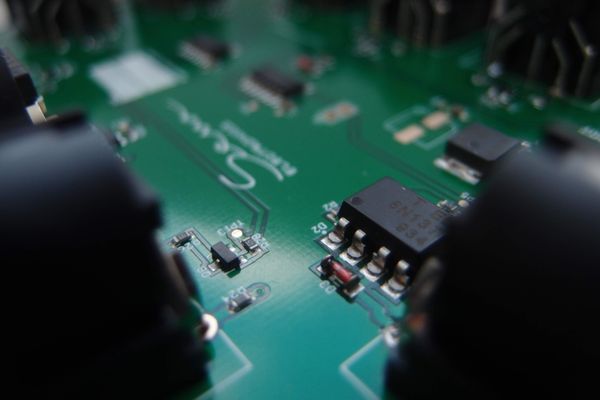

MBA8 Junior, MIDI Thru Splitter 8ch Detail of the of the input circuitry 😍🎼🎹 I tend to link close macro photos of electronic circuits!

MB8 Junior MIDI Splitter Assembly Day

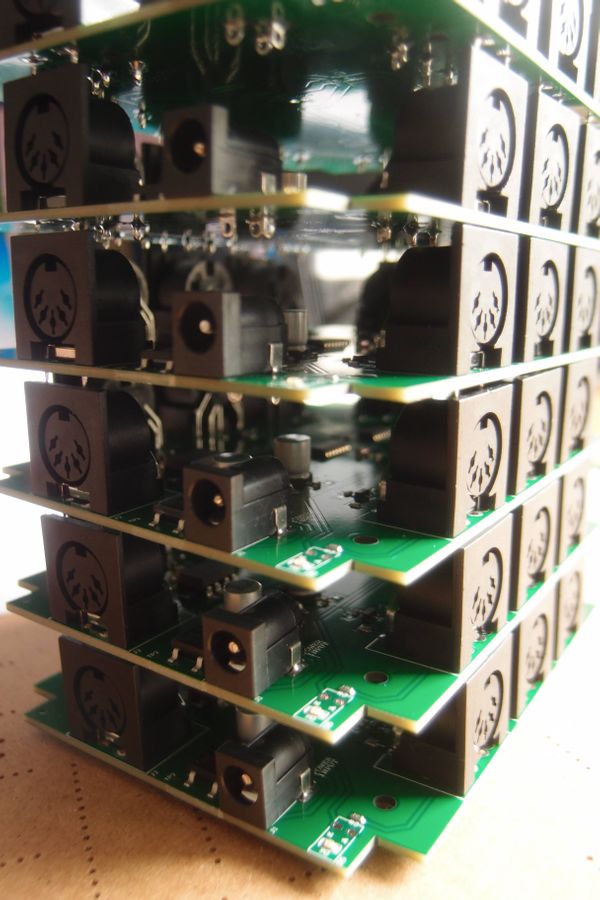

MBA8 Junior, MIDI Thru SPlitter 8ch [https://sergiosena.com/6-way-midi-thru-splitter-board/] Assembly day of another 50units batch that will be going very soon to another group of musicians worldwide

PCB assembly day

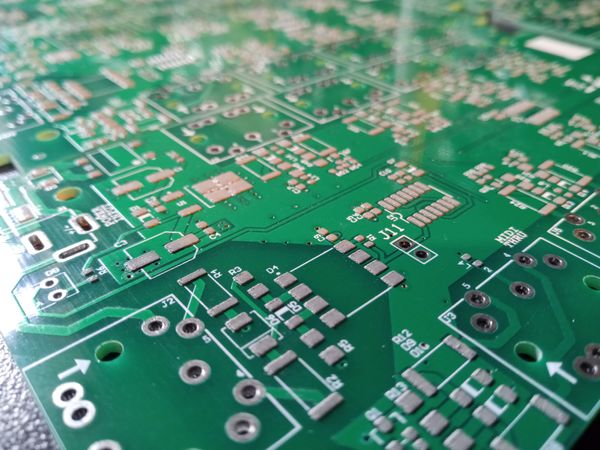

Detail of new board comming up in the Lab, circuitry with radios and batteries. Something different today, not related to music but something I've been working on for a while and that is a preparation for future projects :)

MIDI Footswitch Controller

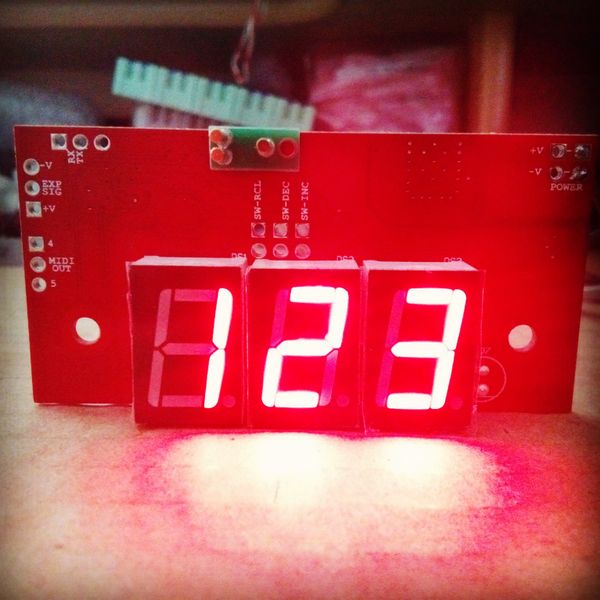

MIDI Footswitch Controller

MIDI Footswitch with 3digit display. Building another unit for another musician, thank you! This was a design made a few years ago but still going strong in quality and simplicity and low cost. If one just needs to send Program Changes to receiving devices, then this is the footswitch controller

MCE1 - MIDI Cable Extender

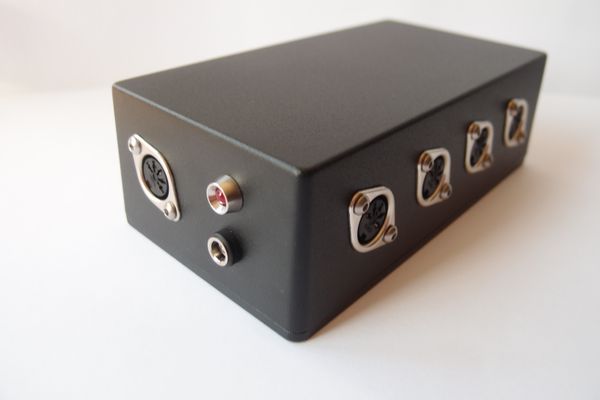

MCE1 - MIDI Cable Extender

Interface for Long MIDI Cables, 250+mts Converts short range MIDI data to long range 250+mts. No lelays or latency added. http://www.sergiosena.com/mce1-midi-cable-extender/ [http://www.sergiosena.com/mce1-midi-cable-extender/?fbclid=IwAR0CzC1nNcUx4v-jrlvAjib6ufrH-GdmLSwVWMW4ebSn3_nLWsuFp9Qq1X8]

MIDI Thru-Splitter Rack assembly

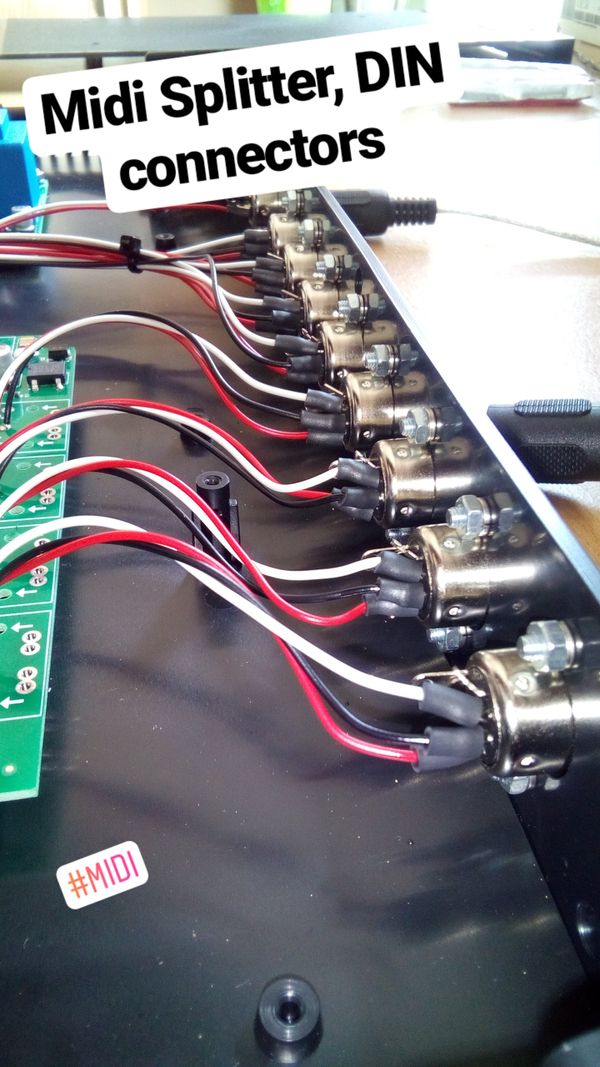

MIDI Thru-Splitter Rack assembly

MIDI Thru-Splitter 8ch, another Rack 1U assembly being ready to go out next week. Detail of the back panel with the DIN connectors and soldered wires. http://www.sergiosena.com/8-way-midi-thru-splitter-in-1u-19-rack-enclosure

MIDI Thru-Splitter 8ch

MIDI Thru-Splitter 8ch

Our #MIDI [https://www.facebook.com/hashtag/midi?__eep__=6&__cft__[0]=AZXeJ6Izvm2OlURQ3TCC5W-RcNmCbz2BpQuZnj7S9fakzRlVRwIXOf_OMRxhN3-UWwkZHU05HbiZitAC_9cTSqYZsTHGOy7NwdyeaEiFQxhtrhsrnTtu9webKSRLsh5sj80&__tn__=*NK-R] Splitter 8ch have been performing impecably for a few years now. We thank all our customers, musicians and artists that chose our Splitter to be your choise of gear. https://sergiosena.com/6-way-midi-thru-splitter-board/

USB Converter on MIDI Test Board

USB Converter on MIDI Test Board

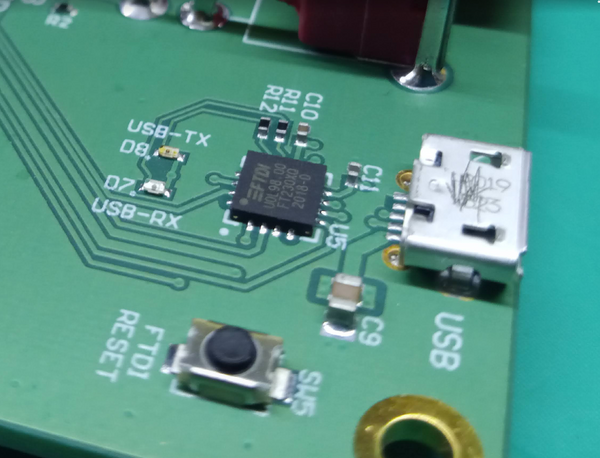

USB-USART converter on MIDI test board 🎼🎹🎸 #midi #synth

Electronic Gear For Musicians

I specialize in the design and construction of custom gear for musicians. Uncompromised systems designed for your unique and specific needs. Good design and assembly techniques are used for each and every job, in order to make the equipment’s failure proof and robust, having to withstand the hardships of
